SPECIFICATIONS
Brand Name: Helorpc
Memory Capacity: 8GB
Hard Drive Capacity: 512GB
Model Number: H30A
Hign-concerned Chemical: None
Processor Model: Intel Celeron J1900
Use: Household
Origin: Mainland China
Type: Mini Desktop
Processor Main Frequency: depend on CPU
Graphics Card Type: Integrated Card
Certification: CE
Certification: FCC
Certification: RoHS
Processor Brand: Intel
Type: MINI PC
RAM: DDR3L
Storage: mSATA SSD or 2.5 inch SSD/HDD

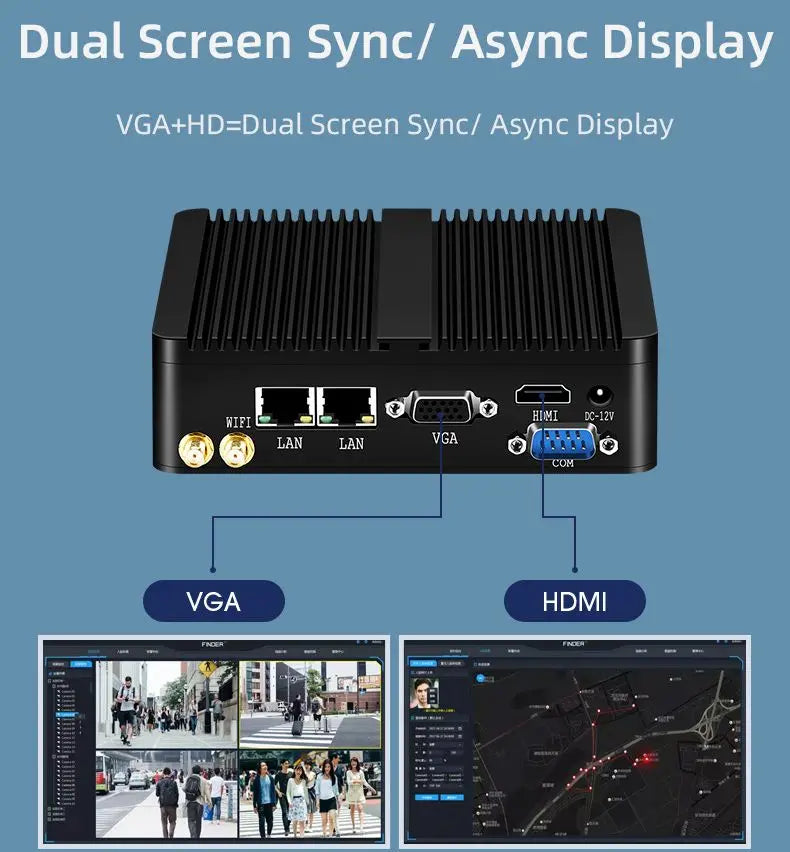

Video Output: HDMI, VGA
LAN: x2
COM: 2xRS232
USB2.0: 3
USB3.0: 1
Support OS: Windows7/Windows8/Windows10/Ubuntu/LINUX/CENTOS
Expansion: 1xMini-PCIE
AC adapter: DC 12V 3A/36W
Cooling System: Fanless Passive Cooling
PC Case: Aluminum alloy
Installation: VESA/wall mounted/desktop
Dimension: 134*124*34mm
Specification |
|
General |
Brand: HLY Type: Mini PC Processor:
In-tel Celeron Processor J1900,2M Cache, up to2.40 GHz,4 Core 4 threads,TDP:10W
In-tel Pentium Processor J2900,2M Cache, up to 2.70GHz,4 Cores 4 threads,TDP:10W
In-tel Celeron Processor N2930,2M Cache, up to 2.20 GHz,4 Core 4 threads,TDP:7.5W In-tel Celeron Processor N2840,1M Cache, up to 2.60 GHz,2 Cores 2 threads,TDP:7.5W
GPU: In-tel H-D Graphics for In-tel Atom Processor Z3700 Series RAM Type: 1 x DDR3L (Low voltage 1.35V) Ram slot, 2G, 4G, 8G Ram for optional Hard Disk type: Support mSATA and 2.5' inch SATA, 30G, 60G, 120G, 250G,500G SSD and 1TB HDD for optional. WIFI:mPCIe( half-size) 300M for optional
|
Product detail |
Onboard LAN:10/100/1000/ Mbps Realtek 8111F Audio Card:high Definition Realtek ALC662 audio control chip WiFi:With dual antenna, 802.11.b/g/n System:window10/7/ 8/ Linux. Color: Black(Other color support customized) Cooling system: Fanless |
Port |

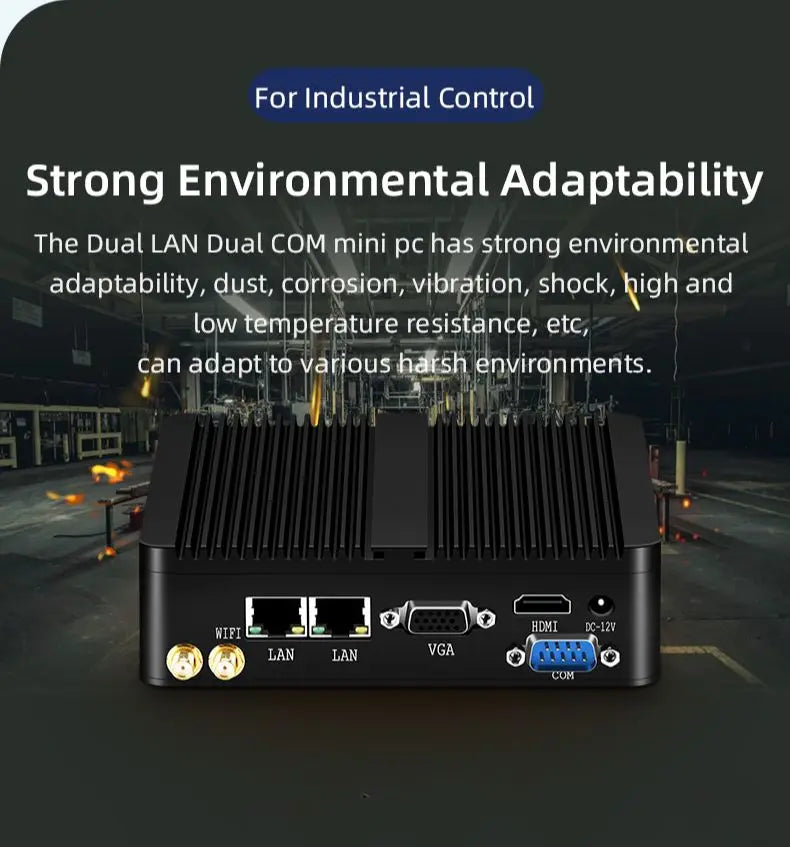

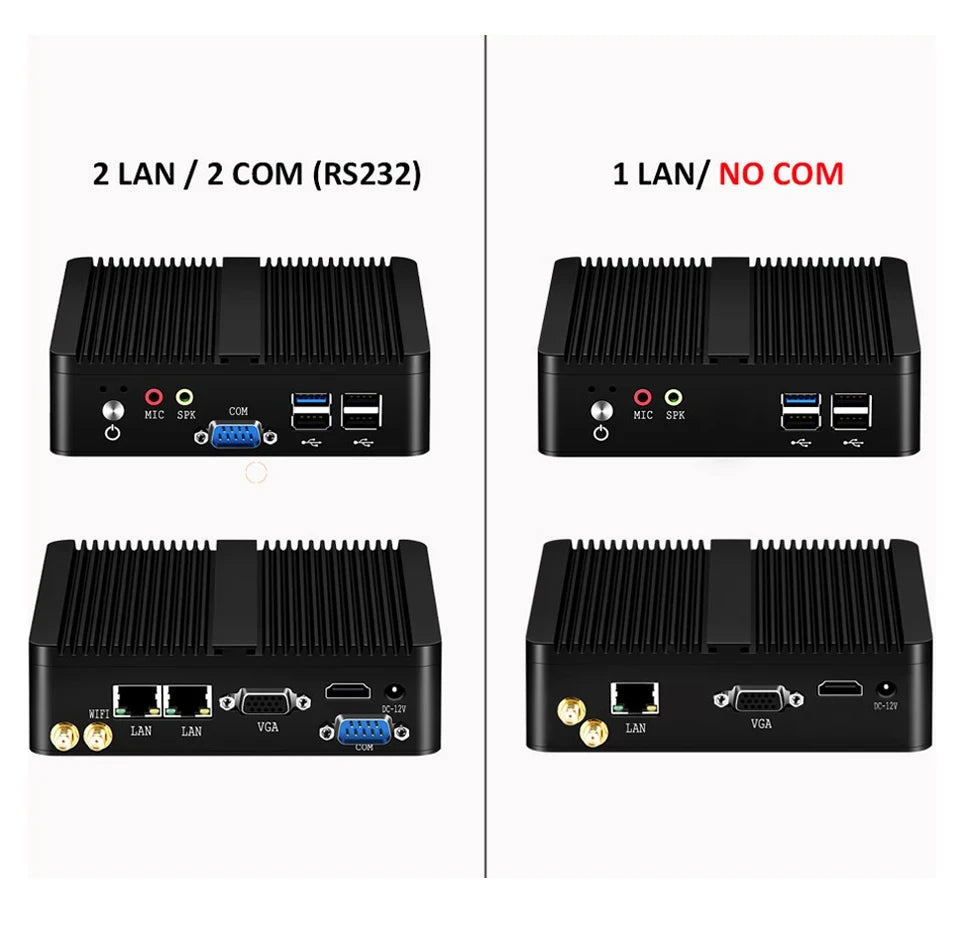

3xUSB2.0 1xUSB3.0 1xVGA 1xH-D 2xLAN 1xMIC and SPK 1x Switch 2xCOM(RS232) |
Power Requirement |
Power Type: External Power Adapter Mode Power Input Vol: 12V Power Input Ampere:5A |
Working Environment |
Operating Temperature :-20℃-80℃ Storage Temperature: 0℃-80℃ Relative Humidity :10%~90% (non-condensing) |
Dimension |
136*126*39mm |
Package Contents |
1 x Mini PC 1 x User manual 1 x Power adapter 1 x VESA mount 1 x WIFI Antenna(Except Barebone computer) |
NOTE:
1.Buying the “No RAM No Storage” is not Pre-installed WiFi and antenna.
2.Buying the Mini PC with RAM and SSD is Pre-installed WiFi and antenna.
3.Mini PC is not Pre-installed 3G/4G LTE moudle,please contact us if you need.
4.Buying the "No RAM No Storage" is need to buy additional RAM and SSD to use it normally.
NOTE:
1.Buying the “No RAM No Storage” is not Pre-installed WiFi and antenna.
2.Buying the Mini PC with RAM and SSD is Pre-installed WiFi and antenna.
3.Mini PC is not Pre-installed 3G/4G LTE moudle,please contact us if you need.
4.Buying the "No RAM No Storage" is need to buy additional RAM and SSD to use it normally.
